Modular Coaxial Needle

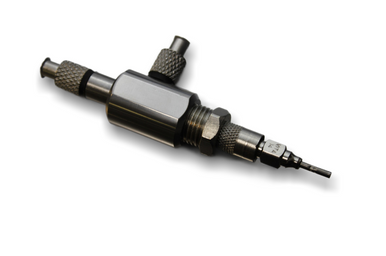

The ramé-hart Modular Coaxial Needle features a stainless steel body and Luer fittings for removable inner and outer needles. A threaded connection permits easy disassembly for cleaning and changing out the inner needle. The default inlet fittings are female Luer connections with an option for Push-to-connect fittings. Both reusable and disposable needles are supported.

The base configuration includes the stainless steel body, (2) Luer inlets, (1) resusable inner needle of any gauge and (1) resuable outer needle of any gauge. Additional needles, both reusable and disposable in different gauges and lengths are available.

The default outer needle length (DIM F) is 10mm and DIM C is 0. See this image. If DIM C = 0, both inner and outer needles end on same plane. If DIM C is positive, the inner needle will extend beyond the outer needle by that amount in mm and if DIM C is negative, then the outer needle will extend beyond the inner needle by that amount. If you need something different from the default values, specify your instructions in the box below for special requirements.

For more product images, see this page.

Allow one week for customization per your specifications.
